Het verstrekken van Innovatieve en Rendabele Zwenkende Aandrijving

Thuis ProductenZonne zwenk Aandrijving

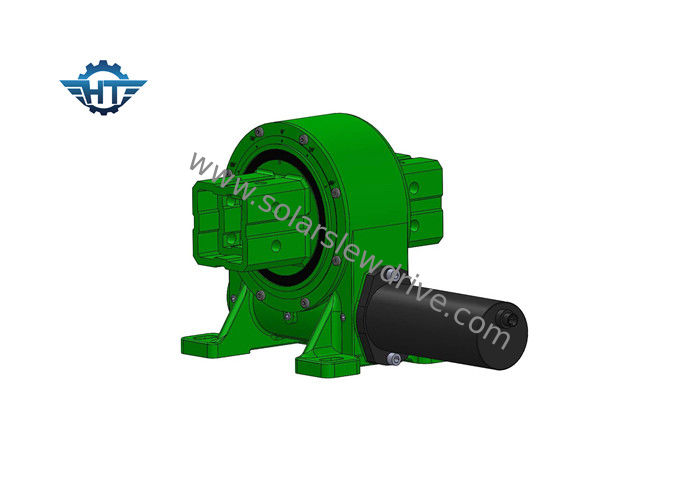

6 duimip66 de Bescherming Zonne zwenkt Aandrijving voor Zonnedrijvers

6 duimip66 de Bescherming Zonne zwenkt Aandrijving voor Zonnedrijvers

  • 6 duimip66 de Bescherming Zonne zwenkt Aandrijving voor Zonnedrijvers
  • 6 duimip66 de Bescherming Zonne zwenkt Aandrijving voor Zonnedrijvers
6 duimip66 de Bescherming Zonne zwenkt Aandrijving voor Zonnedrijvers
Productdetails:
Plaats van herkomst: CHINA
Merknaam: HangTuo
Certificering: CE, ISO9001
Modelnummer: VE6
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 stuk
Prijs: USD 280~330/ pc
Verpakking Details: Triplexdoos
Levertijd: 15~45 dagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 2000 PCs per maand
Contact
Gedetailleerde productomschrijving
materiaal: 50Mn, 42CrMo MODEL: VE6
Toestelverhouding: 51:1 Nominaal vermogentorsie: 6120 NM
Het houden van Torsie: 45000 NM Het overhellen Torsie: 5000 NM
Efficiency: 40% Standaardkleur: RAL 9006
Hoog licht:

6 duim Zonne zwenk Aandrijving

,

IP66 de bescherming Zonne zwenkt Aandrijving

,

De zonnedrijvers zwenken Aandrijving

High Efficiency 6 Inch Solar Slew Drive With IP66 Protection Grade For Solar Trackers



Description

The 6 inch vertical slew drives are mounted vertically, it is specifically designed for flat single axis solar tracking systems that required tracking towards the sun for east to west. The precisely rotation of the vertical slew drive allows the mechanism to track perfectly. This kind of vertical slewing drive is manufactured using the latest technology which incorporates hourglass mechanism.

Advantages

1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi-tooth contact to ensure high load
5. Self-locking function

Technical Data



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg


Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
