Het verstrekken van Innovatieve en Rendabele Zwenkende Aandrijving
Plaats van herkomst: | CHINA |
Merknaam: | HangTuo |
Certificering: | CE, ISO9001 |
Modelnummer: | VE6 |
Min. bestelaantal: | 1 stuk |
---|---|
Prijs: | USD 100~330/ pc |
Verpakking Details: | Triplexdoos |
Levertijd: | 15~45 dagen |
Betalingscondities: | L/C, T/T, Western Union |
Levering vermogen: | 2000 PCs per maand |
Plaats van Oorsprong: | CHANGZHOU, CHINA | Functie: | Hoge Torsie |
---|---|---|---|
Bescherm Eigenschap: | ingesloten | Type: | Zwenkende Aandrijving |
Materiaal: | 42CrMo of 50Mn | Garantie: | 5~10 Jaar |
Toepassing: | Zonnemachtssysteem | Kleur: | Vereiste klant |
Hoog licht: | hydraulisch zwenk motor,zonnedrijversaandrijving |

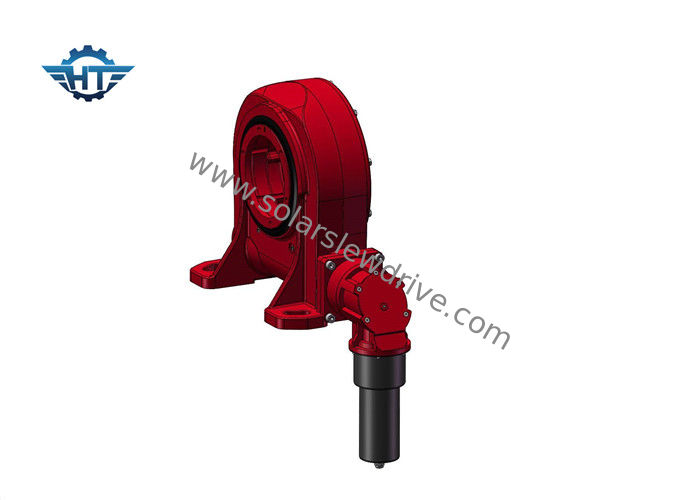

VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System
Description
VE6 slewing drive, which have a compact design with high torque for single axis solar tracking system, is powered with hourglass worm technology for maximum gear torque and the smoothest rotation.
The standard slew drives are fitted with an eclosed housing and single self locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.
Applications
Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities.
VE Model Performance Parameters
Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (degree) | Precision(°) | IP | Self-locking | Weight (kg) |
3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.1 | 66 | Yes | 12kg |
5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.1 | 66 | Yes | 18kg |
7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.1 | 66 | Yes | 32kg |
8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.1 | 66 | Yes | 28kg |
9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.1 | 66 | Yes | 52kg |
12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.1 | 66 | Yes | 65kg |
14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.1 | 66 | Yes | 88 kg |
17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.1 | 66 | Yes | 135 kg |
21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.1 | 66 | Yes | 192 kg |
25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.1 | 66 | Yes | 251 kg |
