6 duim Enig zwenk Aandrijvingsversnellingsbak met 4kNm-Holdingstorsie voor Zonne Volgende Post

Name: 6 duim Enig zwenk Aandrijvingsversnellingsbak met 4kNm-Holdingstorsie voor Zonne Volgende Post
Brand: HangTuo
SKU: VE6
Price: 280 USD
Availability: InStock
Rating: 4.5 (115 reviews)

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	HangTuo
Certificering:	CE, ISO9001
Modelnummer:	VE6

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stuk
Prijs:	USD 280~330/ pc
Verpakking Details:	Triplexdoos
Levertijd:	15~45 dagen
Betalingscondities:	L/C, T/T, Western Union
Levering vermogen:	2000 PCs per maand

Contact

Gedetailleerde productomschrijving

snelheid:	0.016rpm	Toepassing:	Zonne-energie
Bestuurder:	Elektrische Motor	IP Rang:	IP66
Maximum torsie:	7140Nm	Het houden van Torsie:	40kNm
model:	VE6	Verhouding:	51:1
Hoog licht:	hydraulisch zwenk motor , zonnedrijversaandrijving

6 Inch Single Slew Drive Gearbox With 4kNm Holding Torque For Solar Tracking Station

Product Description

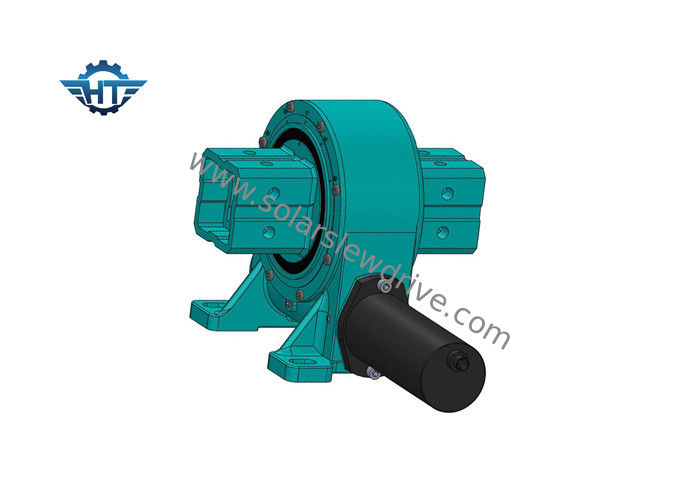

The VE6 slewing drive designing is the biggest bright spot of Hangtuo slewing drives ,the vertical designing is mainly used for the solar tracker system , the special structure simplifies the complex structure of the single axis solar tracking system bracket, reducing the cost of whole system, the vertical designing is playing a more competitive role in the solar tracker market.

Model:	VE6	Place of Origin	Changzhou,China
Brand	HANGTUO	Type	Enclosed
Material	42CrMo,50Mn	Output Torque	5060 N.m
Tilting Moment Torque	5 K N.m	Holding Torque	40 K N.m
Static Axial Rating	25 KN	Static Radial Rating	30 KN
Gear Ratio	51:1	Efficiency	40%

Applications

The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications

Features

1. Vertical enclosed designing with single or double output.

2. Hourglass worm gear, multi-tooth contacting, transfer high torque to withstand greater load.

Parameters of Other VE Series

Model	Ratio	Rated Output Torque (N.m)	Tilting Torque (N.m)	Holding Torque (N.m)	Axial Load (kN)	Radial Load (kN)	Efficiency	Precision (°)	Self-locking	Weight (kg)
3"	31:1	600	1500	1800	22	15	40%	≤0.1	Yes	12
5"	37:1	800	5000	9200	16	27	40%	≤0.1	Yes	18
7"	57:1	1750	7000	13200	34	58	40%	≤0.1	Yes	32
8"	51:1	2250	11200	20400	50	80	40%	≤0.1	Yes	28
9"	61:1	2250	16000	30800	60	130	40%	≤0.1	Yes	52
12"	78:1	4300	25000	40560	77	190	40%	≤0.1	Yes	65
14"	85:1	5600	48000	44200	110	230	40%	≤0.1	Yes	88
17"	102:1	6750	67000	53040	142	390	40%	≤0.1	Yes	135
21"	125:1	16000	89000	65000	337	640	40%	≤0.1	Yes	192
25"	150:1	21450	112000	89000	476	950	40%	≤0.1	Yes	251
