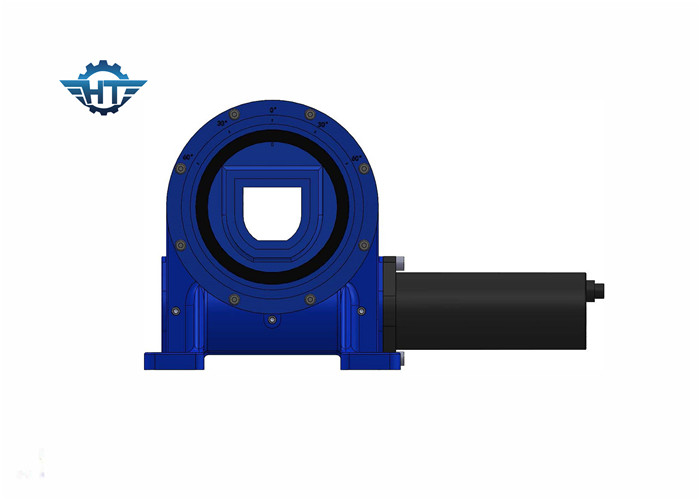

ve de Zonnedrijver zwenkt Aandrijving, Hoge Torsie en Hoge Precisie voor Zonne-energie en Satelliet

ve de Zonnedrijver zwenkt Aandrijving, Hoge Torsie en Hoge Precisie voor Zonne-energie en Satelliet

  • ve de Zonnedrijver zwenkt Aandrijving, Hoge Torsie en Hoge Precisie voor Zonne-energie en Satelliet
  • ve de Zonnedrijver zwenkt Aandrijving, Hoge Torsie en Hoge Precisie voor Zonne-energie en Satelliet
ve de Zonnedrijver zwenkt Aandrijving, Hoge Torsie en Hoge Precisie voor Zonne-energie en Satelliet
Productdetails:
Plaats van herkomst: CHINA
Merknaam: HANGTUO
Certificering: CE, ISO9001
Modelnummer: VE6
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 PC
Prijs: 200~330 USD/PC
Verpakking Details: Triplexdoos
Levertijd: 15~30 dagen
Levering vermogen: 12000 PCS/YEAR
Contact
Gedetailleerde productomschrijving
Type: Zwenkende Aandrijving materiaal: 42CRMN of 50Mn
toepassing: Zonnemachtssysteem Garantie: 10 jaar
Kleur: Vereiste klant Grootte: VE6
Motor: 24V Eigenschap: Het 30 Gebiedsleven
Hoog licht:

24V Motor Slewdrive

,

Solar Energy Slewdrive

,

Satellite Slewdrive

Ve Solar Tracker Slew Drive, High Torque And High Precision For Solar Energy And Satellite



Description



A vertical self locking worm gear slewing drive, commonly referred as a worm drive or slewing bearings, is a complete, ready to install system that consists of gear or slewing ring bearing, worm, base, and completely enclosed housing. It can be customized with hydraulic or electric motors, planetary gearboxes, AC motors, stepper motors etc.



Features



1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Grease had been filled before factory

5. Simple installation and low maintenance

6. Rational space utilization

7. The gear is self-locking; therefore a brake is not necessary

8. Easy and fluent method of starting and stopping

9. High tilting torque, suitable for horizontal installation



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
